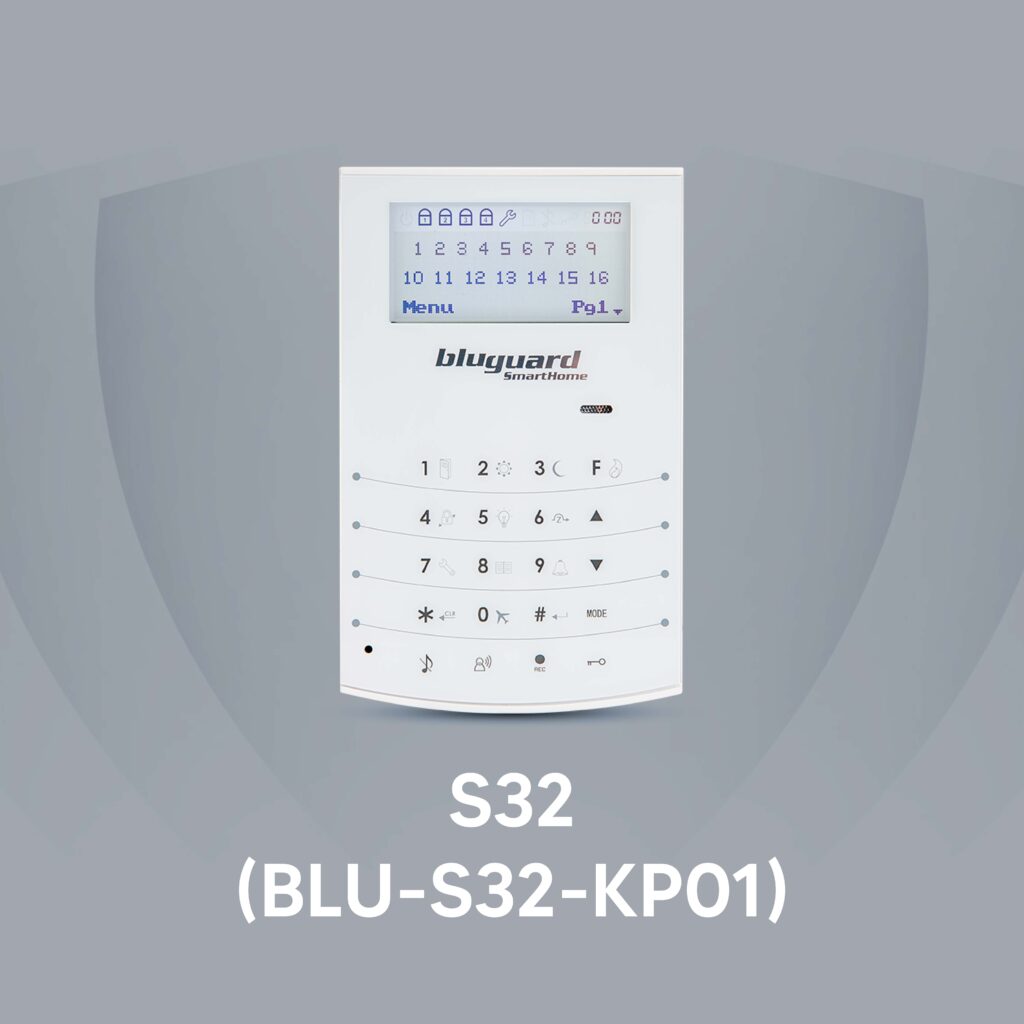

S32
Features

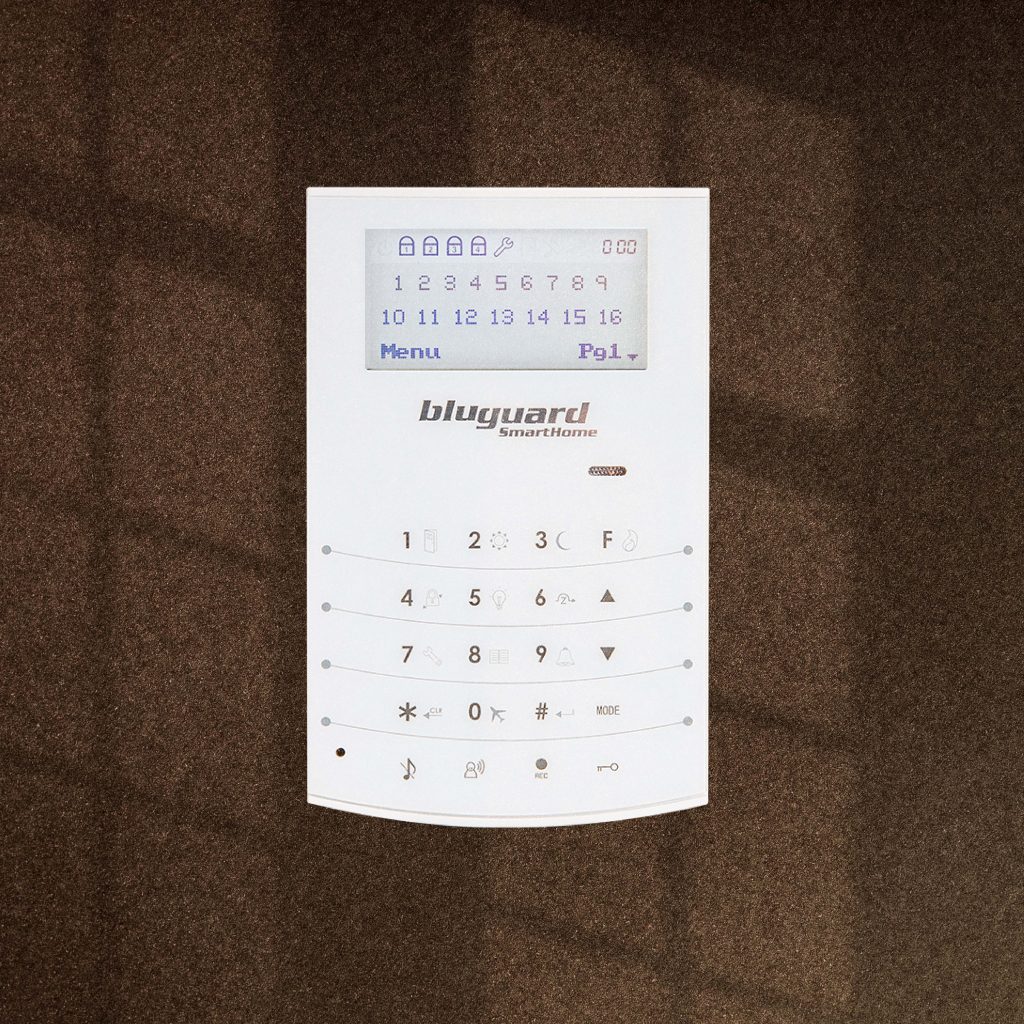

Intercom Between Keypad
Shorten the distance to communicate with your family in the house.

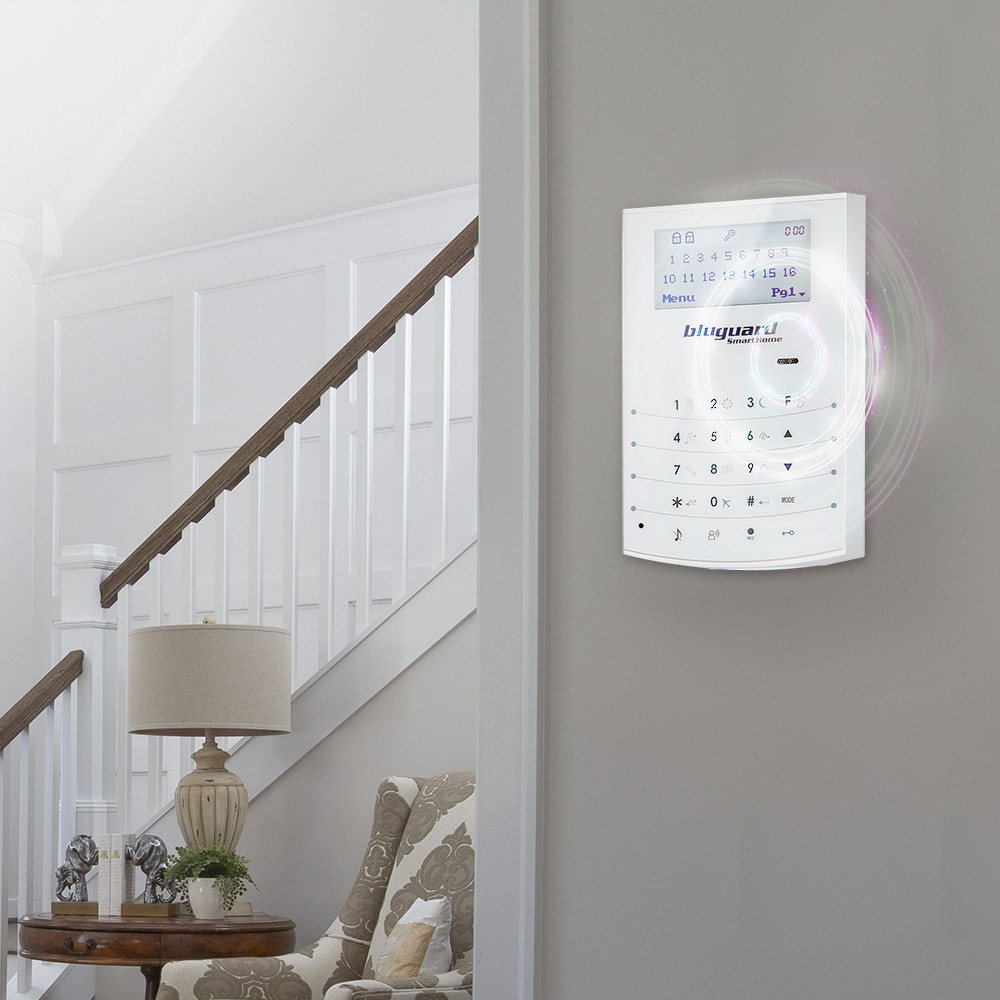

Voice Assist
Voice guidance to address the main system by reporting on the status of each alarm zone & home automation

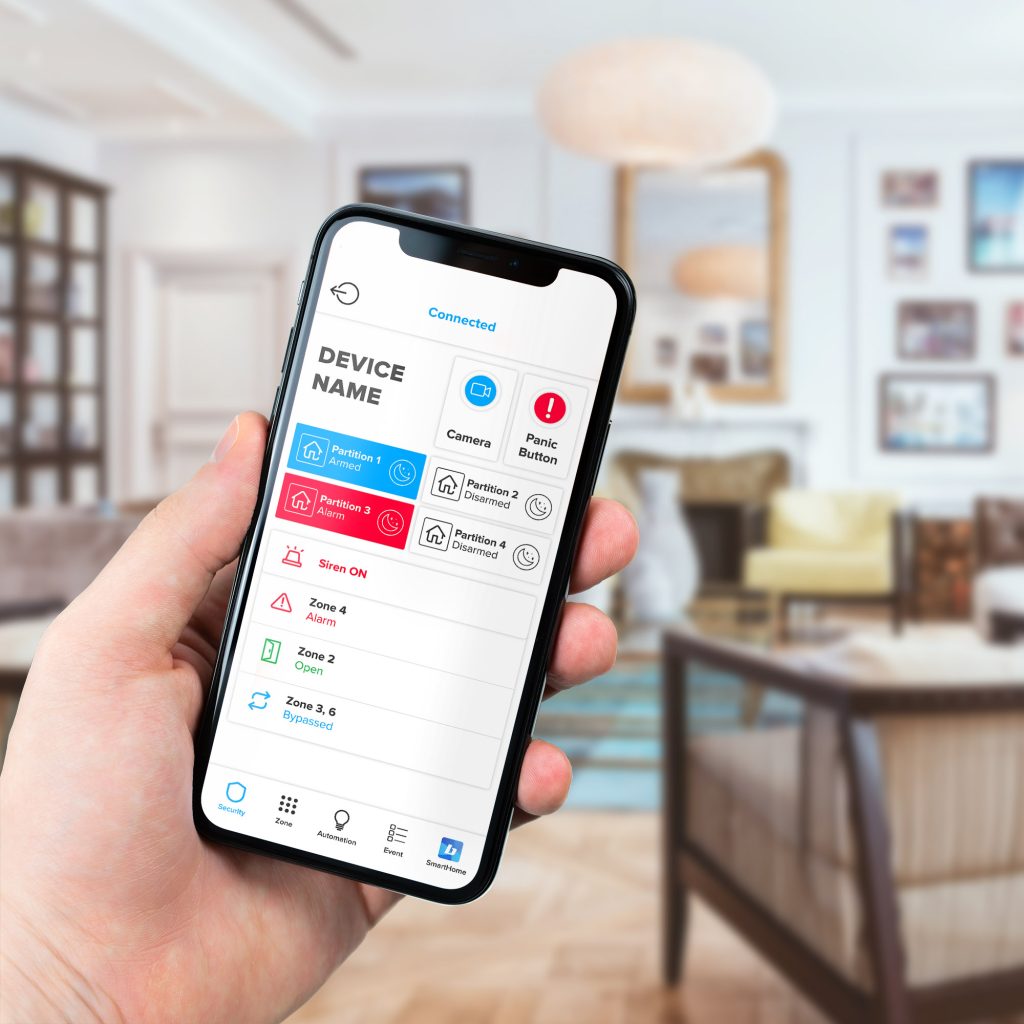

P2P App
No more worries when you can control your home security and home automation outside with your smartphone or tablet services.
Elderly Care
Smart Monitoring sytem for elders by detects any extended period of inactivity. When any unusual event detected, the system will send an alert to designated contacts to take further action.
Wired Security System
Built In Mic
Intercom
Lightning Surge
Up To 32 Zones
Voice Mailbox
Expandable Accessories
Internal Siren
Designer siren Box
LED Outdoor Siren

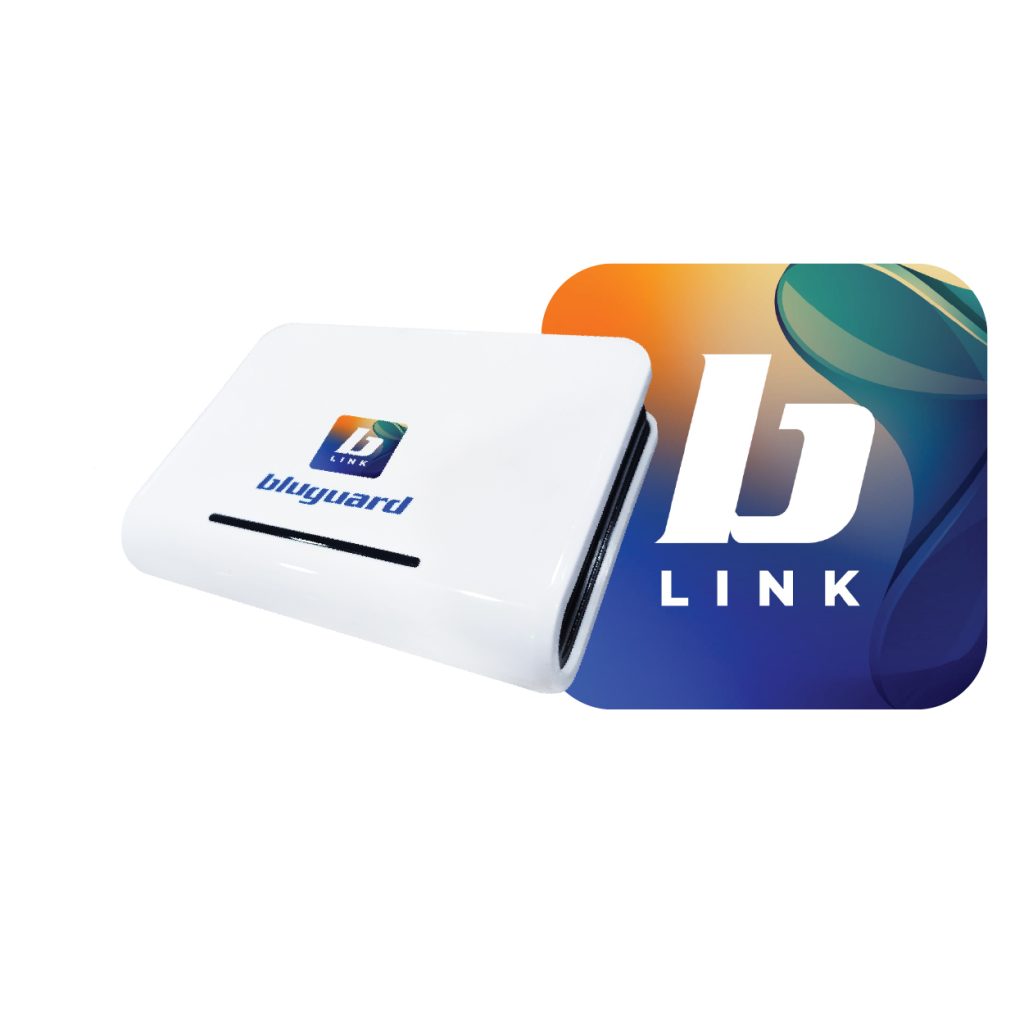

P2P App Module
| Zone | 16 (expand up to 32) |
| Battery | Rechargeable battery |
| Metal Casing Weight | 3.5kg |
| Auto Dialler System | Yes (Voice) |
| Colour | White |
| Wireless Compatible* | Yes |
| Metal Casing Dimension | 285 x 300 x 80mm |
| GSM* | Yes |
| Display | LCD |
| Keypad | Capsense |
| Accessories Sensors Compatible | Accessories Sensors Compatible |
| Mobile Apps* | Yes |
| Speaker & Microphone | Yes |
| Camera Compatible* | Yes |
| Lighting Surge Protection | Yes |
| Operating Voltage | 6 ~ 12 VDC |
| Housing | Plastic housing |
| Color | White |
| Dimension | 110 mm x 110 mm x 50 mm |
| Operating Voltage | 6 ~ 12 VDC |
| Current Drain | 3 mA Max |
| Output Level | 12 dB at 12VDC, 1 FT |
| Power Rating | 10 W |
| Colour | Blue |
| Per Minute | 90 Flashes |
| Current Drain | 200 mA |
| Model Number | AL-OSB-300 |
| Power Source | 12Vdc |
| Piezo Siren | Maximum 105dB |
| Waterproof | IP65 |
| Battery Power Monitoring | Yes |
| Tamper Detection | Yes |
| Operating Environment | Outdoor |
| Operating Temperature | 15 ~ 35°C |
| Relative Humidity | 25 ~ 75% |
| Dimensions | 200 mm (W) x 200 mm (H) x 47 mm (D) |
| Input Voltage | 120Vdc |
| Current Consumption | 80mA |
| Connection to Control Panel | 4 wires |
| Connection to Router | RJ 45 network cable |
| Dimension | 110 mm x 80 mm x 25 mm |
