Ximple W2 Plus
Features
Wireless System
No wiring needed, easy and clean installation. Built-in protection that prevents signal interference, ensuring your home stays secure even during attempted tampering.

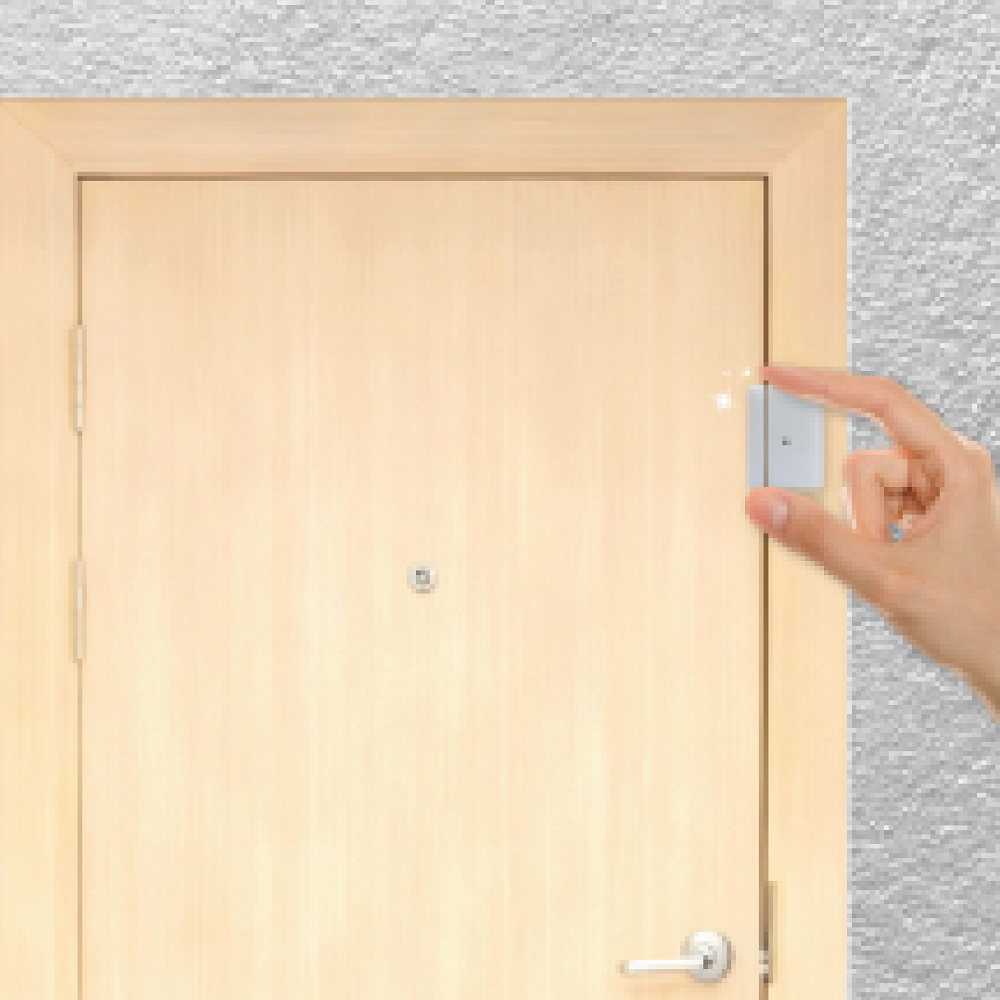

Easy installation (DIY)
Plug & play wireless alarm security that you can do-it-yourself effortlessly
Mobile App Control
Total control at your fingertips with a user-friendly app
Ready to Report
Works with LAN cable, WiFi or cellular for stable connection
Wireless Security System
Ethernet+WiFi+Cellular
Full Protection
Deters intrusion, water, smoke. Keep your whole family safe.
Plug & Play
Totally DIY. Pick any devices you need. Easy connect and use.
Integrated Solution
Integration with camera and automation control.

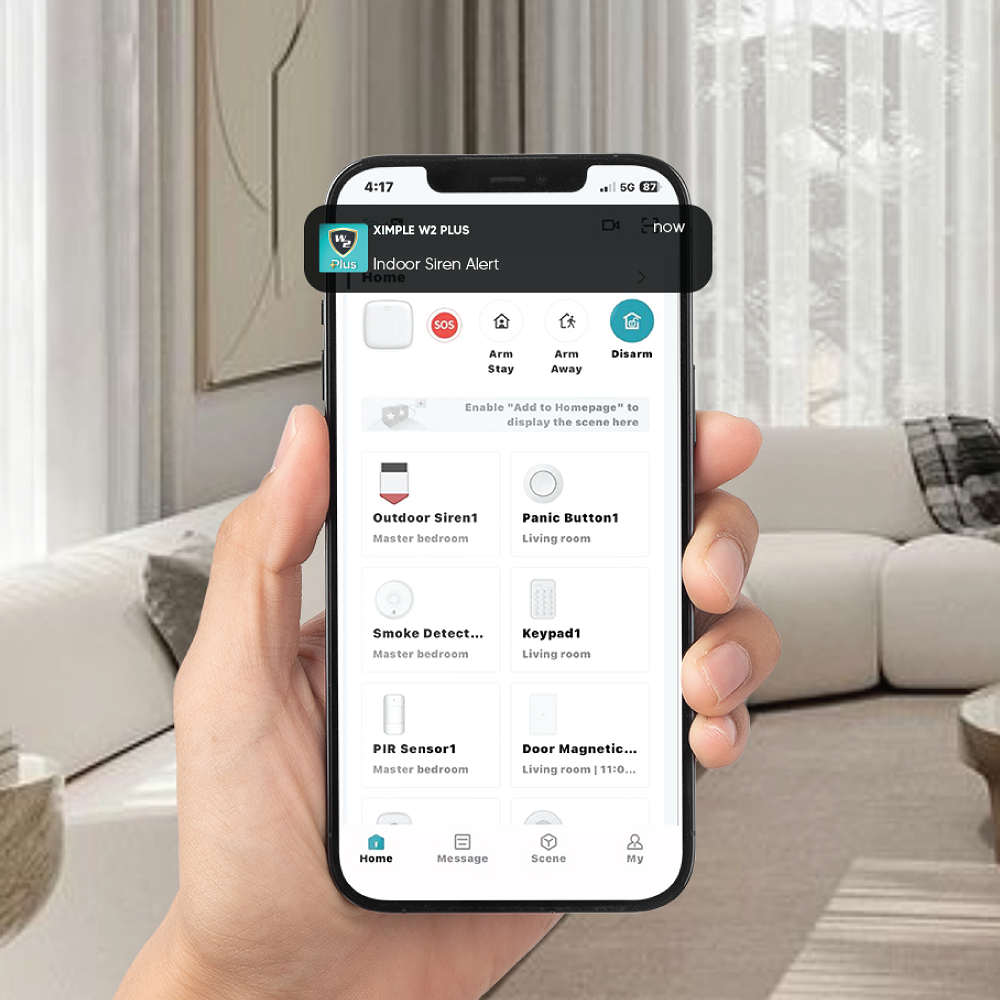

App Control
With Ximple W2 Plus App you can remotely control the system and all devices even when you are away.
Scene
Flexible DIY automation scene as you need.
Expandable With Unlimited Accessories

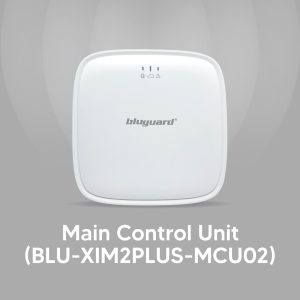

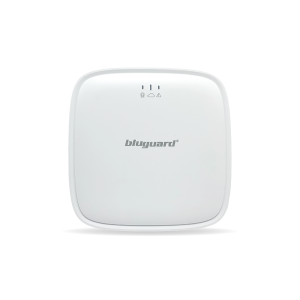

Main Control Unit

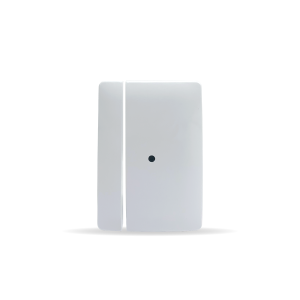

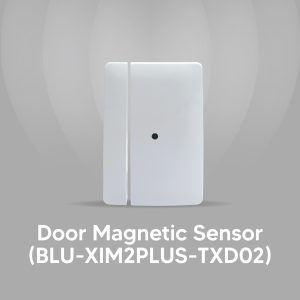

Door/Window Magnetic Sensor

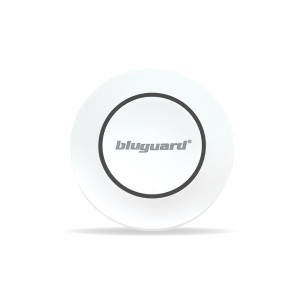

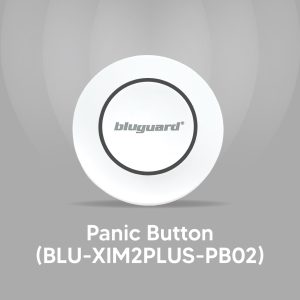

Panic Button

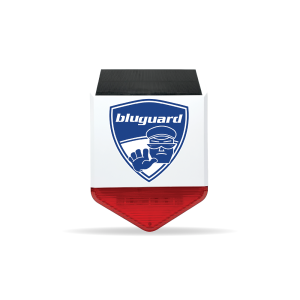

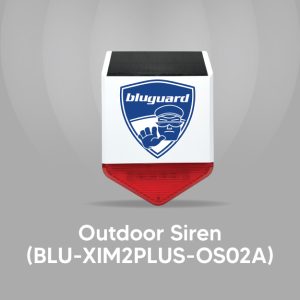

Outdoor Siren

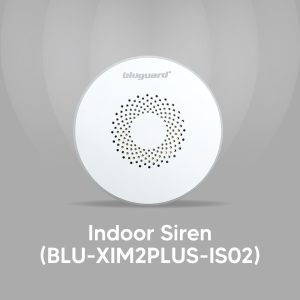

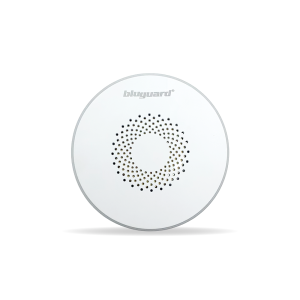

Indoor Siren

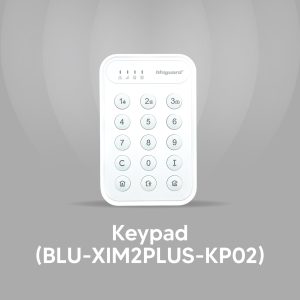

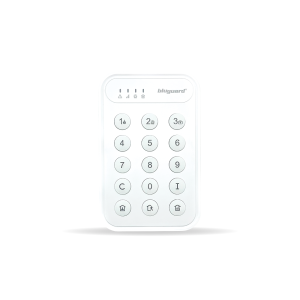

Wireless Keypad

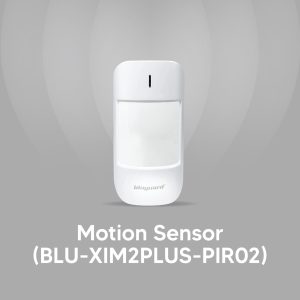

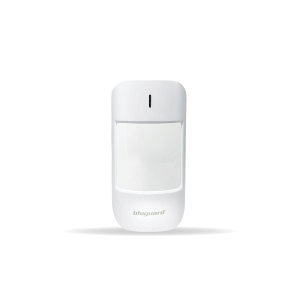

PIR Motion Sensor

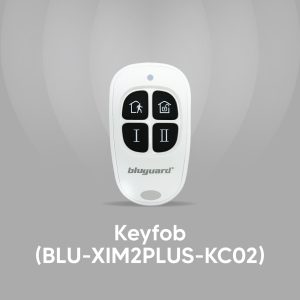

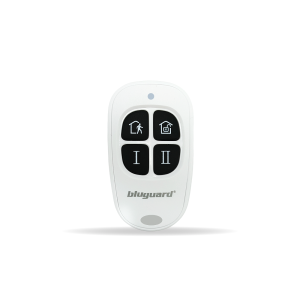

Keyfob

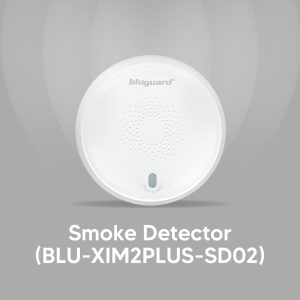

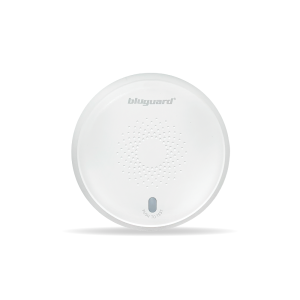

Smoke Detector

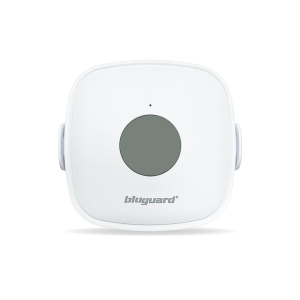

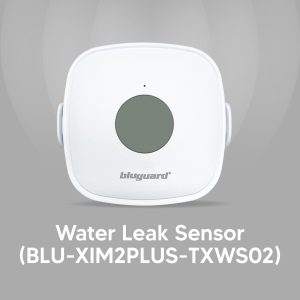

Water Leak Sensor

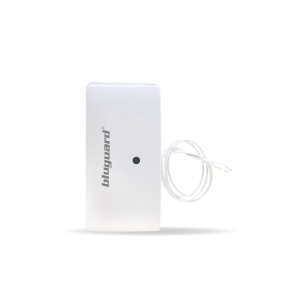

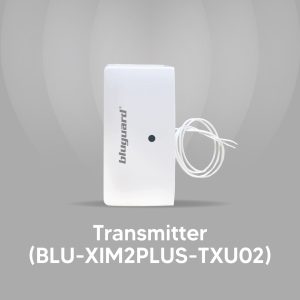

Transmitter
| Firmware Upgrade | OTA via APP |
| Users | 1 Super Admin+4 Admin+32 App Users+32 Local Users |
| Devices Connected | Up to 128 |
| Wi-Fi | 2.4GHz, 802.11 b/g/n |
| Ethernet | 1 x RJ45, 10/100Mbps |
| Cellular | 1 x SIM (4G) |
| Power Supply | Type-C, 5VDC 2A |
| Battery | 2500mAh 18650 Battery, Up to 4h Power Backup (standby mode) |
| Transmission Method | Two-Way RF Wireless |
| Transmission Frequency | 921MHz |
| Transmission Security | AES-128 Encryption |
| Operation Temperature | -10°C ~ 45°C |
| Dimension | 150mm x 150mm x 37mm |
| Weight | 320g |
| Detection Method | Opening Contact |
| Detection Gap | >17mm |
| Advanced Features | Digital Processing, Signal Strength Detection, Find Me |
| Tamper Protection | Rear |
| Transmission Frequency | 921MHz |
| Transmission Range (Open Space) | 1000m |
| Advanced Tech | AES-128 Encryption, FHSS, TDMA |
| Battery | AA Battery x 1, Up to 2 years (standby mode) |
| Operation Temperature | -10°C to 55°C |
| Dimension | 82mm x 42mm x 16mm (body) 82mm x 11mm x 18mm (magnet) |
| Weight | 55.6g |
| Application Scenario | Indoor |
| Installation Method | Adhesive |
| Advanced Features | Signal Strength Detection, Find Me |
| Transmission Frequency | 921MHz |
| Transmission Range (Open Space) | 1000m |
| Advanced Tech | AES-128 Encryption, FHSS, TDMA |
| Battery | CR2032 x 1, Up to 2 years (standby mode) |
| Operation Temperature | -10°C to 55°C |
| Dimension | 50mm x 16mm |
| Weight | 19.8g |
| Application Scenario | Indoor |
| Alarm Buzzer | 85dB/95dB/105dB |
| Advanced Features | Signal Strength Detection, Find Me |
| Tamper Protection | Rear |
| LED Indicator | 3 |
| Transmission Frequency | 921MHz |
| Transmission Range (Open Space) | 1000M |
| Advanced Tech | AES-128 Encryption, FHSS, TDMA |
| Power Supply | 1700mAh Lithium Battery with Solar Charging, Up to 2 years (standby mode) |
| Operation Temperature | -10°C to 55°C |
| Dimension | 290mm × 200mm × 58mm |
| Weight | 655.5g |
| IP Rate | IP65 |
| Installation Method | Wall Mounting |
| Application Scenario | Outdoor |
| Alarm Buzzer | 85dB/95dB/105dB |
| Advanced Features | Signal Strength Detection, Find Me |
| Tamper Protection | Rear |
| Power Switch | Power on/off |
| Transmission Frequency | 921MHz |
| Transmission Range (Open Space) | 1000m |
| Advanced Tech | AES-128 Encryption, FHSS, TDMA |
| Power Supply | 3.7V Lithium Battery with External Power Plug, Up to 2 years (standby mode) |
| Operation Temperature | -10°C to 55°C |
| Dimension | 80mm × 34mm |
| Weight | 89g |
| Application Scenario | Indoor |
| Advanced Features | Signal Strength Detection, Find Me |
| Tamper Protection | Rear |
| Transmission Frequency | 921MHz |
| Transmission Range (Open Space) | 1000m |
| Advanced Tech | AES-128 Encryption, FHSS, TDMA |
| Battery | Four AAA Batteries, Up to 2 years (standby mode) |
| Operation Temperature | -10°C to 55°C |
| Installation Method | Screw/Adhesive |
| Dimension | 140mm x 86mm x 22mm |
| Weight | 170g |
| Detection Method | Passive Infrared |
| Detection Performance | 12m, 100° |
| Pet Immunity | 10kg |
| White Light Filter | 2000lux |
| Advanced Features | Digital Processing, Digital Temperature Compensation, Signal Strength Detection, Find Me, Dynamic Threshold |
| Tamper Detection | Rear (Triggered when cardan shaft is removed from the PIR sensor) |
| Transmission Frequency | 921MHz |
| Transmission Range (Open Space) | 1000m |
| Advanced Tech | AES-128 Encryption, FHSS, TDMA |
| Battery | CR123A x 1, Up to 2 years (standby mode) |
| Operation Temperature | -10°C to 55°C |
| Dimension | 114.7mm x 61.2mm x 43.8mm |
| Weight | 102g |
| Mounting Height | 1.8m to 2.4m |
| Application Scenario | Indoor |
| Basic Features | Arm, Disarm, Custom button |
| Transmission Frequency | 921MHz |
| Transmission Range (Open Space) | 1000m |
| Advanced Tech | AES-128 Encryption, FHSS, TDMA |
| Battery | CR2032 x 1, Up to 2 years (standby mode) |
| Operation Temperature | -10°C to 55°C |
| Dimension | 59mm x 34mm x 12mm |
| Weight | 14.6g |
| Alarm Buzzer | 80dB |
| LED Indicatior | 1 |
| Tamper Detection | Rear |
| Transmission Frequency | 921MHz |
| Transmission Range (Open Space) | 1000m |
| Battery | CR123A x 1, Up to 2 years (standby mode) |
| Operation Temperature | -10°C to 55°C |
| Dimension | 90mm x 90mm x 37mm |
| Mounting Method | Ceiling |
| Application Scenario | Indoor |
| Weight | 103.8g |
| Advanced Features | Digital Processing, Signal Strength Detection, Find Me |
| LED Indicator | 1 |
| Transmission Frequency | 921MHz |
| Transmission Range (Open Space) | 1000m |
| Advanced Tech | AES-128 Encryption, FHSS, TDMA |
| Battery | CR2032 x 1, Up to 2 years (standby mode) |
| Operation Temperature | -10°C to 55°C |
| Dimension | 64.5mm x 64.5mm x 20mm |
| Weight | 46g |
| IP Rate | IP66 |
| Advanced Features | Digital Processing, Signal Strength Detection, Find Me |
| Tamper Protection | Rear |
| Transmission Frequency | 921MHz |
| Transmission Range (Open Space) | 1000m |
| Advanced Tech | AES-128 Encryption, FHSS, TDMA |
| Battery | AA Battery x 1, Up to 2 years (standby mode) |
| Operation Temperature | -10°C to 55°C |
| Dimension | 82mm × 42mm × 16mm |
| Weight | 43.9g |
| Application Scenario | Indoor |
| Installation Method | Adhesive |
